BluGuitar Midi 1 Midi Interface

The BluGuitar Midi 1 interface for the BluGuitar AMP 1, now available at Eastgate Music. If you want to build an individual programmable guitar system using the MIDI controller of your choice, you can control AMP1 ™ using the BluGuitar MIDI1  adapter interface.

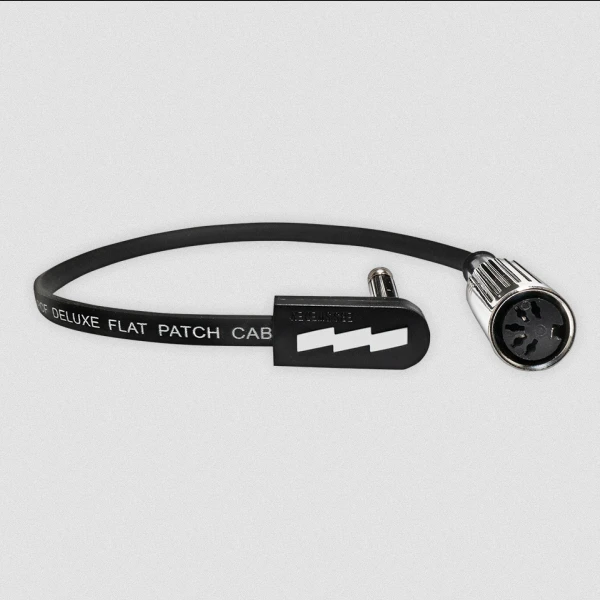

BluGuitar Midi 1 turns the  AMP1’s remote port into a MIDI In port. This allows you to recall all of AMP1 ™ ’s switching functions via MIDI program change commands. Additionally, control change commands CC 007 (MasterVolume), CC 020 (Gain) and CC 030 (PowerSoak) are also received. You put MIDI1 ™ ’s adapter interface’s port into AMP1 ™ ’s REMOTE port: on the opposite end is a 5-pin DIN socket for the MIDI IN. The interface electronics are powered by AMP1 ™ , meaning that no extra power supply or cables are required.

Every possible switching possibility on AMP1 ™ has been assigned its own specific MIDI program change command. When the corresponding command is sent from MIDI Channel 1, AMP1 ™ switches to the desired state. For example, if you want CLASSIC with BOOST and REVERB, MIDI Program 35 has to be sent.
