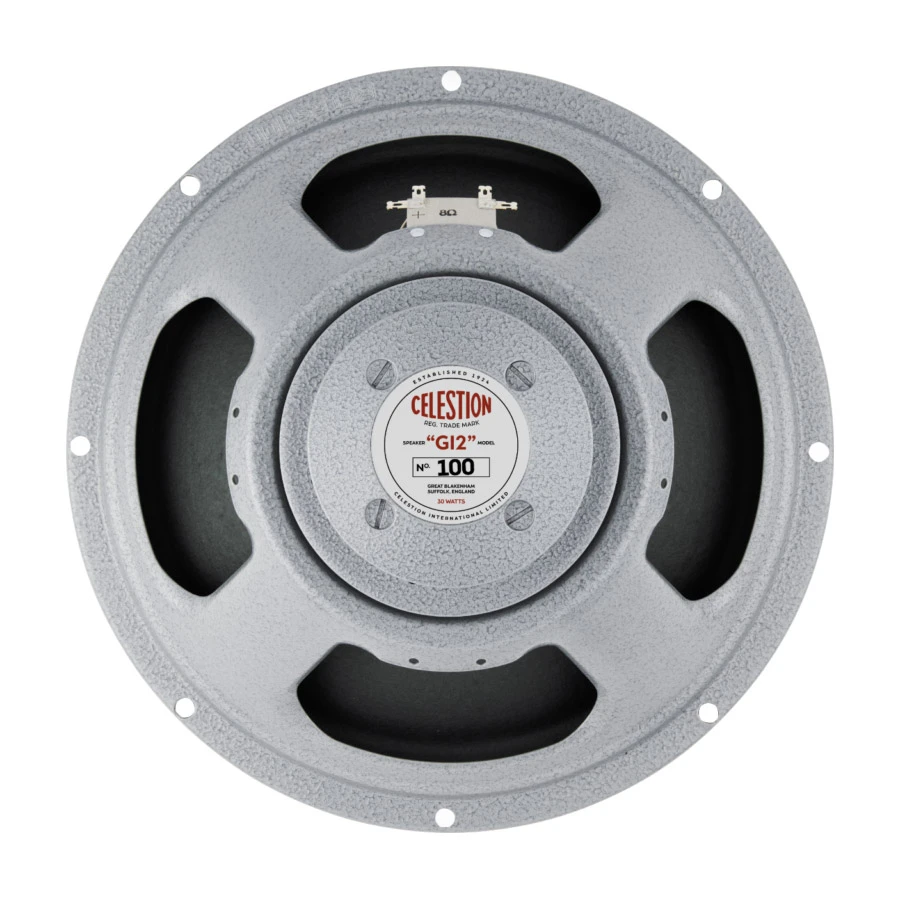

Celestion 100 Anniversary Replacement Guitar Speaker Alnico 30watt 8ohm

Celebrating a legendary guitar speaker!

Meticulously hand-crafted in the UK, the Celestion 100 celebrates the world’s first purpose-built guitar loudspeaker which, in various guises, has voiced some of the most legendary and memorable riffs and solos of all time.

Referencing our own collection of early alnico speakers, the Celestion 100 is born of a painstaking research and development process, analysing, understanding and then replicating the very essence and tone of these exquisite collector’s items in a speaker that looks as great as it sounds.

SPECIFICATIONS

Nominal diameter: 305mm / 12in
Power rating: 30W
Rated impedance: 8Ω or 16Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Magnet type: Alnico
Voice coil diameter: 1.75in / 44mm
Frequency range: 75-5000Hz
Resonance frequency, Fs: 75Hz
DC resistance, Re: 6.6Ω or 11.8Ω

MOUNTING INFORMATION
Cut-out diameter: 283mm / 11.1in
Diameter: 309mm / 12.2in
Magnet structure diameter: 104mm / 4.1in
Mounting hole dimensions: 104mm / 4.1in Ø
Mounting hole PCD: 297mm / 11.7in
Number of mounting holes: 8
Chassis depth (inc gasket): 92mm / 3.63in
Overall depth: 155mm / 6.1in
Unit weight: 4kg / 8.8lb
