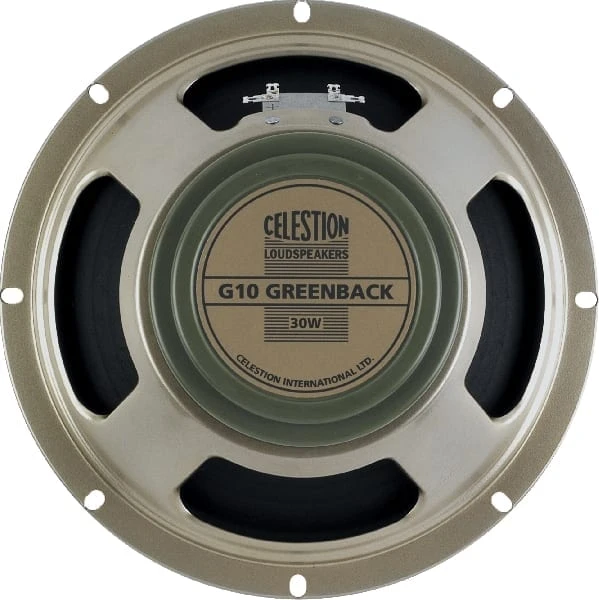

Celestion G10 Greenback Speaker 8ohm Made in U.K
The 10″ that thinks it’s a 12″. This speaker was developed to recapture the legendary sound of Celestion’s 1970s 10s – a 10″ speaker with a surprisingly meaty tone.
Low in output but with the weighty low-end balance of a 12″, the G10 Greenback features a complex, creamy mid-range and smooth, vintage top-end.
In small combos this speaker adds real class, and when combined in a 4×10 gives rise to a raunchy, full-bodied tone, rich in low-end thump.
| GENERAL SPECIFICATIONS | |
|---|---|
| Nominal diameter | 10″, 254mm |
| Power Rating | 30W |
| Nominal impedance | 8Ω and 16Ω |
| Sensitivity | 95dB |
| Chassis type | Pressed steel |
| Voice coil diameter | 1.75″, 44.5mm |
| Voice coil material | Round copper |
| Magnet type | Ceramic |
| Frequency range | 95-5500Hz |
| Resonance frequency, Fs | 98Hz |
| DC resistance, Re | 6.41Ω& 12.05Ω |
| MOUNTING INFORMATION | |
|---|---|
| Diameter | 10.0″, 254mm |
| Overall depth | 4.0″, 102mm |
| Magnet structure diameter | 4.9″, 124mm |
| Cut-out diameter | 9.0″, 229mm |
| Mounting slot dimensions | 0.25 x 0.43″, 6.5 x 11mm Ø |
| Number of mounting slots | 8 |
| Mounting slot PCD | 9.6″, 245mm |
| Unit weight | 3.5lb, 1.6kg |
