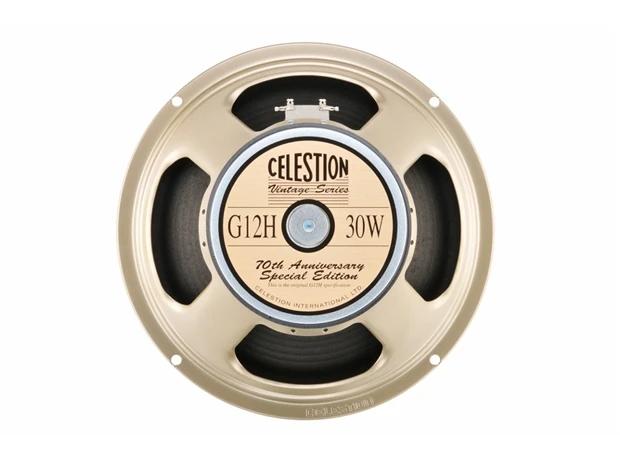

Celestion T4534 Classic Series 12″ 30W Speaker 16OHM

Re-released for our 70th anniversary, the G12H evokes the sounds of the classic 1960s and ’70s rock bands.

Loud and proud thanks to its heavy magnet structure, the G12H provides a fusion of the Vintage 30 and the Greenback characteristics, producing a thick, warm and syrupy sound while still retaining a tight and focused bottom end.

When played clean, the speaker remains clear and musical without ever sounding harsh. In overdrive, pick attack is vividly articulated with sustained notes trailing off into warm harmonic tones.

SPECIFICATIONS:
Chassis type Pressed steel
DC resistance, re 6.7? and 13.1?
Frequency range 75-5000Hz
Magnet type Ceramic
Magnet weight 50oz, 1.42kg
Nominal diameter 12″, 305mm
Nominal impedance Available 8? or 16?
Power rating 30Wrms
Resonance frequency, Fs 85Hz
Sensitivity 100dB
Voice coil diameter 1.75″, 44.5mm
Voice coil material Round copper
Mounting Information
Cut-out diameter 11.1″, 283mm
Diameter 12.2″, 309mm
Magnet structure diameter 6.1″, 156mm
Mounting slot dimensions 0.31″, 7.9mm Ø
Mounting slot PCD 11.7″, 297mm
Number of mounting slots 4
Overall depth 5.3″, 135mm
Unit weight 10.4lb, 4.7kg
