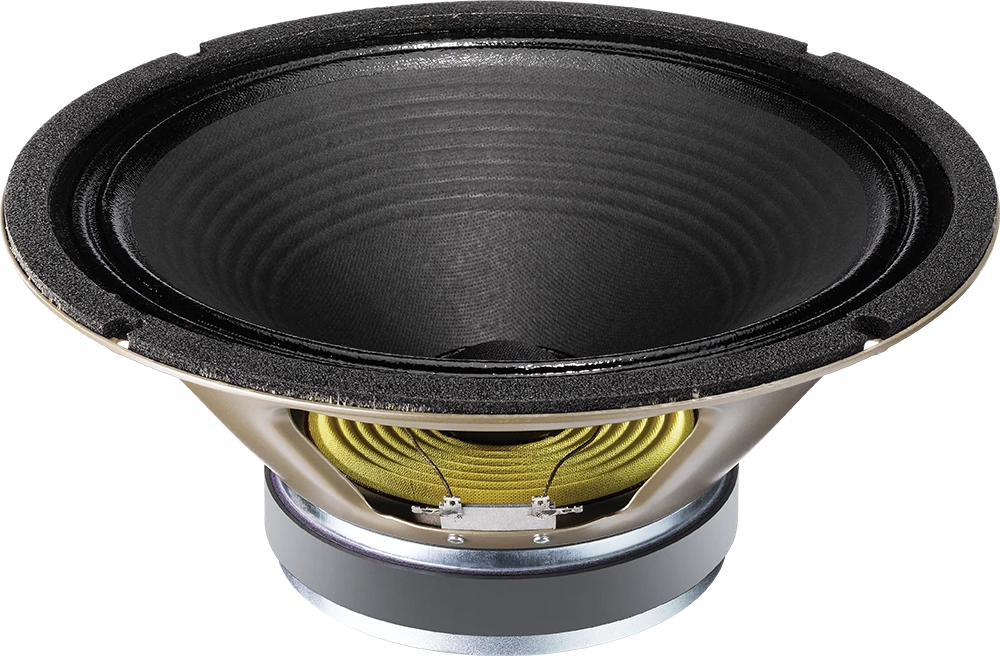

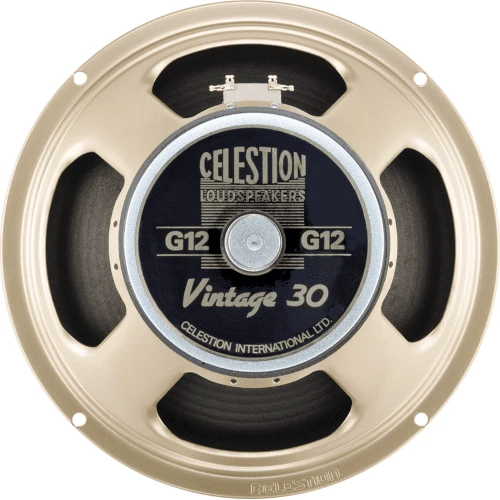

Celestion Vintage 30 12″ Guitar Speaker 60 Watts

The Celestion Vintage 30 60 Watt Guitar Speaker features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Celestion Vintage 30 8 Ohm sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens and Peter Frampton.

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly ‘hot-rodded’ amplifiers, we set out to develop a modern speaker, capable of handling much more power and overdrive. To achieve this, we coupled our ‘H’ magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.



Vintage 30 60W, 12″ Guitar Speaker

• Nominal diameter: 12″, 305mm
• Power Rating: 60W
• Nominal impedance: 8 ohms and 16 ohms
• Sensitivity: 100dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75″, 44.5mm
• Voice coil material: Rounded copper
• Magnet type: Ceramic
• Magnet weight: 50oz, 1.42kg
• Frequency range: 75-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 7.3 ohms & 12.9 ohms
